32kWh lithium iron phosphate battery

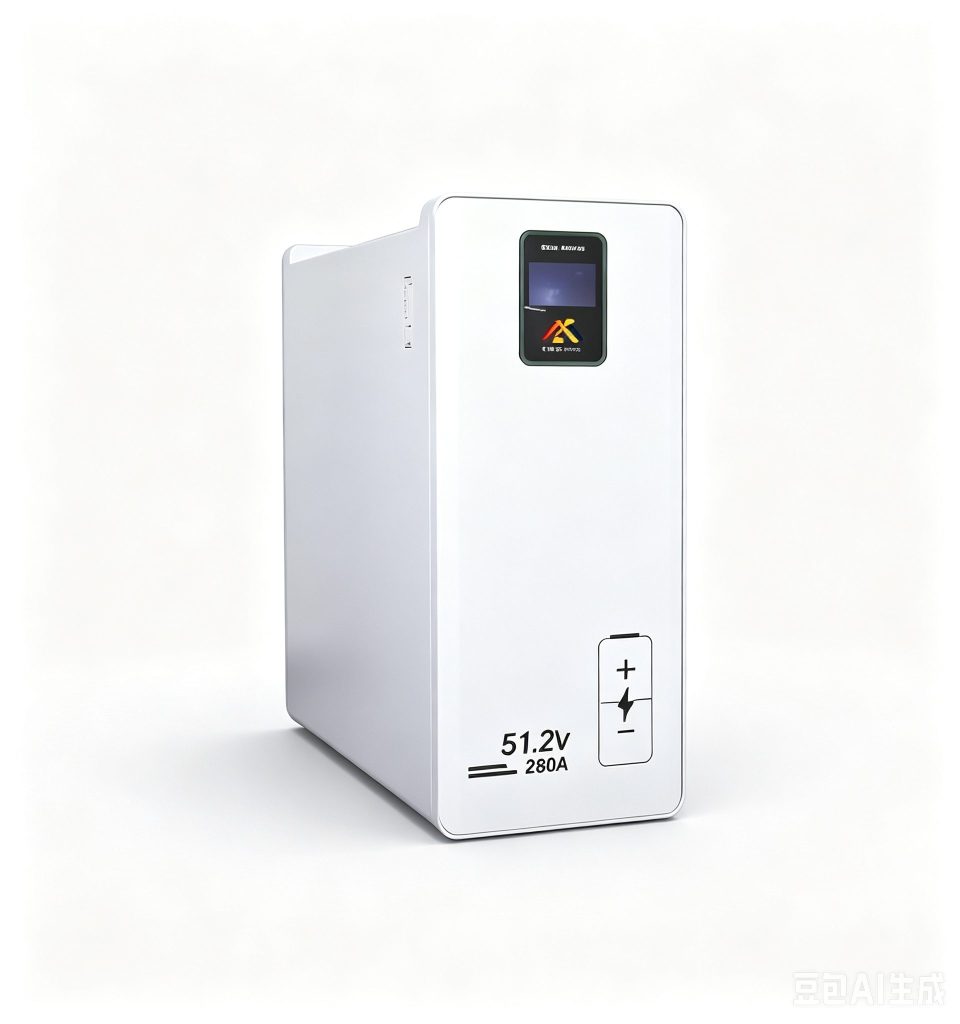

Syncorepower 32kWh Wall-Mounted LiFePO4 Energy Storage Battery
Product Overview
The Syncorepower wall-mounted lithium iron phosphate energy storage battery is a compact, high-capacity energy storage solution designed for residential villas, commercial buildings, solar carports and distributed photovoltaic projects. Equipped with an intelligent built-in BMS and real-time display screen, it seamlessly integrates with off-grid, hybrid and grid-tied solar inverters to maximize solar self-consumption and deliver reliable emergency backup power. Featuring safe and stable LiFePO4 cells, a lightweight miniaturized design, ultra-long cycle life and comprehensive multi-layer safety protection, this battery is widely applicable to household rooftop PV systems, commercial peak-shaving energy storage and off-grid microgrid scenarios.
Key Features
- Real-time display of remaining battery capacity, system voltage, charging and discharging power
- Large display panel, big usable capacity and high continuous power output
- Lightweight, compact cabinet design for easy transportation and on-site installation
- Long cycle life of over 3000 charge-discharge cycles
- Excellent multi-level safety protection performance
- Built-in intelligent Battery Management System (BMS)
- Wide temperature adaptability for charging, discharging and storage
- Stable operation under varying atmospheric pressure and humidity conditions
Core Technical Specifications
| Category | Parameter | Detailed Specification |
|---|---|---|
| Basic Configuration | Product Model | 32kWh LiFePO4 Energy Storage Battery |
| Battery Cell Type | Lithium Iron Phosphate (LiFePO4) | |
| Nominal Voltage | 51.2V | |
| Standard Capacity | 32153.6Wh (32kWh) | |
| Electrical Performance | Charging Limit Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V | |
| Rated Charging Current | 150A | |
| Maximum Charging Current | 300A | |
| Rated Discharging Current | 150A | |
| Maximum Discharging Current | 300A | |
| Environmental Adaptability | Charging Temperature Range | 0℃ ~ 55℃ |
| Discharging Temperature Range | -20℃ ~ 75℃ | |
| Storage Temperature | 25℃ ± 2℃ | |
| Applicable Atmospheric Pressure | 86kPa ~ 106kPa | |
| Applicable Relative Humidity | 15% ~ 90% RH | |
| Physical Parameters | Product Dimensions (LWH) | 350900850mm |
| Net Weight | 241.86kg |
Performance Advantages
- High energy density design with 32kWh large capacity, meeting daily household and small commercial electricity demand
- Wide working temperature window, supporting stable operation in extreme cold and high temperature environments
- Intelligent BMS enables active cell balancing, effectively extending the overall service life of the battery pack
- Smooth communication with mainstream hybrid solar inverters, realizing automatic energy allocation and scheduling
- Low-maintenance structure with ultra-long service cycle, significantly reducing long-term operation and replacement costs
- Excellent load adaptability, stable output under different load conditions
Comprehensive Protection Functions
The battery pack is equipped with full-range multi-level safety protection mechanisms:
- Over-charge & Over-discharge Protection
- Over-current, Overload & Short Circuit Protection
- Real-time Cell Temperature Monitoring & Overheat Cut-off Protection
- Low-temperature Charging Limitation Protection
- Insulation Resistance Fault Detection
- Individual Cell Voltage Balance Control
- Reverse Connection Anti-damage Protection
Application Scenarios
- Residential rooftop solar energy storage & villa emergency backup power
- Small factory, office building, hotel and commercial peak-shaving energy storage
- Solar carport PV + energy storage charging system
- Remote off-grid areas without stable municipal grid supply
- Agricultural independent microgrid power supply
- Distributed photovoltaic energy storage projects
Why Choose Syncorepower?
Syncorepower LiFePO4 wall-mounted energy storage batteries combine high-safety lithium iron phosphate cells, self-developed intelligent BMS technology and user-friendly real-time monitoring display. Every product undergoes strict full-performance aging testing before delivery. Our solutions help global users increase solar self-consumption rate, reduce monthly electricity costs, and obtain stable, secure and reliable power supply for all residential and commercial energy storage needs.
