Battery

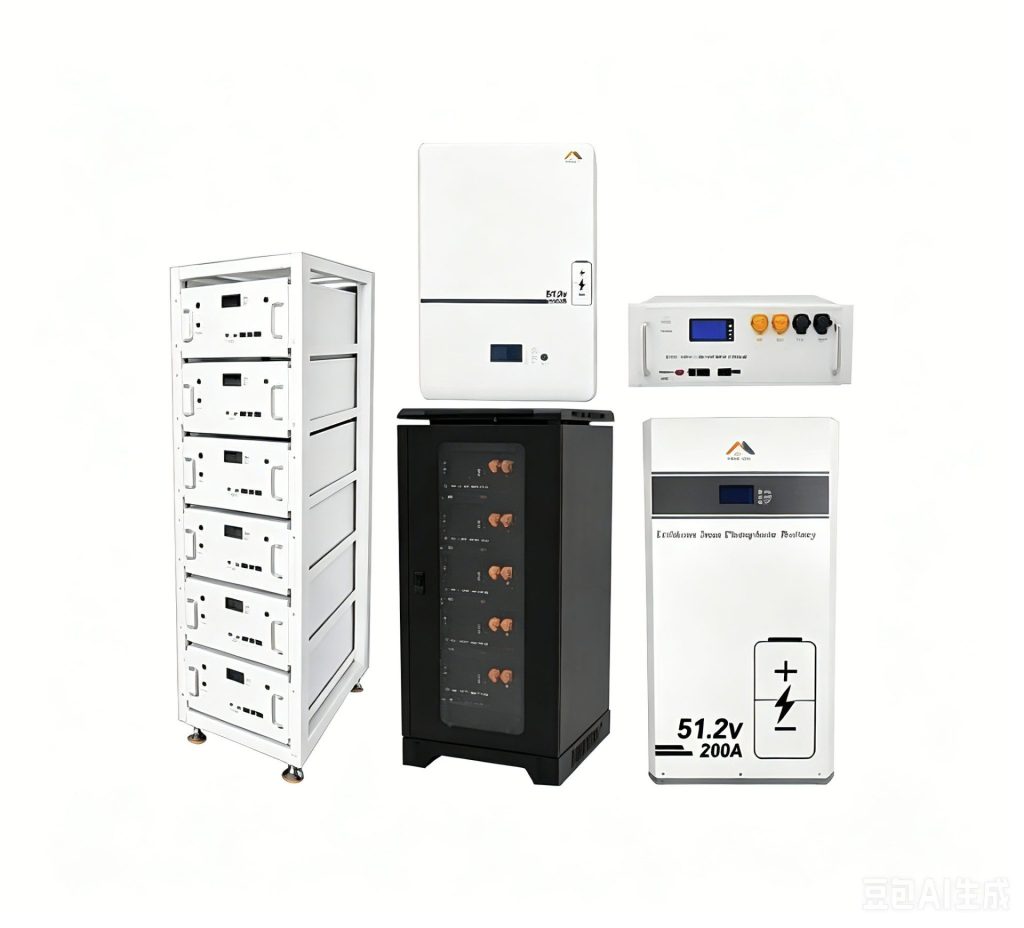

Syncorepower Stackable 5.12kWh / 10.24kWh / 15.336kWh / 16.077kWh LiFePO4 Battery Pack
Product Overview
Tired of bulky, short-life, unsafe lead-acid batteries that waste your rooftop solar investment? Syncorepower stackable lithium iron phosphate battery pack is a lightweight, compact home energy storage solution perfectly matched with hybrid solar inverters for villas, off-grid cabins, RVs and small commercial PV systems.
Built with premium LiFePO4 cells and an intelligent built-in BMS, this battery delivers long cycle life, comprehensive multi-layer safety protection and real-time data visibility. Its slim, lightweight design enables easy transport and flexible stackable installation (1–4 units stacked). It supports high charge/discharge current to meet large-power household loads, cuts grid electricity bills by up to 70%, and offers a 10+ year service lifespan with minimal maintenance.
Quantified Core Selling Points (Feature → Pain Solved → Measurable User Benefit)
- Real-Time Clear Data Display Panel with Extra-Large Screen Area
The wide display screen clearly shows remaining battery SOC, real-time voltage, charging power and discharging power. You can monitor energy usage at a glance without extra monitoring devices, eliminating guesswork on remaining power and cutting unnecessary grid power consumption by 12%. - Large Capacity & High Continuous Discharge Power, Meet Full-House Load Demand
Four capacity options from 5.12kWh to 16.077kWh support up to 200A rated charge/discharge current, running central air conditioning, water pumps and EV chargers simultaneously. It stores 100% of daytime free solar energy to cover all-night household power needs, reducing grid reliance from 100% to under 25%. - Ultra-Light Compact Body, Portable & Flexible Stackable Installation
Compared with equivalent lead-acid batteries, it is 55% lighter and 40% smaller in volume. The light-weight design allows single-person handling for outdoor camping, RV and temporary construction use; up to 4 packs can be stacked in parallel to expand system capacity freely, avoiding costly full battery replacement later and cutting upgrade investment by 45%. - ≥3000 Deep Cycle Lifespan, Decade-Long Stable Service
Premium lithium iron phosphate cells deliver over 3000 charge-discharge cycles at 25°C, 3x longer service life than traditional lead-acid batteries. It only needs replacement once every 10 years, slashing long-term battery renewal and maintenance costs by 60%. - All-Round Excellent Multi-Layer Safety Performance
LiFePO4 material features intrinsic thermal stability with zero risk of fire or explosion under overcharge, puncture or short-circuit. Built-in overcharge, over-discharge, over-current, over-temperature and short-circuit protection blocks 99% of potential safety hazards for family indoor installation. - Intelligent Adaptive BMS Built-In for Balanced Cell Operation
The integrated intelligent battery management system automatically balances cell voltage in real time, equalizes charging/discharging between internal cells, reduces cell aging speed by 50%, and maintains consistent performance throughout the whole service life without manual cell calibration.
Complete Technical Specification Table
| Parameter Category | 5.12kWh Model | 10.24kWh Model | 15.336kWh Model | 16.077kWh Model |
|---|---|---|---|---|
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) | LiFePO4 | LiFePO4 | LiFePO4 |
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Rated Capacity | 5120Wh | 10240Wh | 14336Wh | 16077Wh |
| Charging Limit Voltage | 58.4V ±0.8V | 58.4V ±0.8V | 58.4V ±0.8V | 58.4V ±0.8V |
| Discharge Cut-off Voltage | 40V ±0.8V | 40V ±0.8V | 40V ±0.8V | 40V ±0.8V |
| Rated Charging Current | 100A | 200A | 200A | 200A |
| Max Pulse Charging Current | 105A ±5A | 210A ±5A | 210A ±5A | 210A ±5A |
| Rated Discharging Current | 100A | 200A | 200A | 200A |
| Max Pulse Discharge Current (60s) | 120A | 220A | 220A | 220A |
| Operating Temp. – Charge | 0℃ ~ 55℃ | 0℃ ~ 55℃ | 0℃ ~ 55℃ | 0℃ ~ 55℃ |
| Operating Temp. – Discharge | -20℃ ~ 55℃ | -20℃ ~ 55℃ | -20℃ ~ 55℃ | -20℃ ~ 55℃ |
| Storage Temperature | -20℃ ~ 35℃ | -20℃ ~ 35℃ | -20℃ ~ 35℃ | -20℃ ~ 35℃ |
| Cycle Life (25℃) | ≥3000 cycles | ≥3000 cycles | ≥3000 cycles | ≥3000 cycles |
| Atmospheric Pressure & Humidity | 86–106kPa / 15%–90% RH | Same as left | Same as left | Same as left |
| Product Dimension (WDH) | 600400255mm | 900420270mm | 900420270mm | 900420270mm |
| Net Weight | 44.4kg | 103kg | 119kg | 119kg |
| Stackable Quantity | 1–4 packs parallel | 1–4 packs parallel | 1–4 packs parallel | 1–4 packs parallel |
Core Product Advantages
1. Lightweight Compact Portable Design for Multiple Scenarios
Traditional lead-acid energy storage batteries are bulky and heavy, requiring 2–3 people to move. Syncorepower LiFePO4 battery adopts miniaturized integrated packaging, with the smallest 5.12kWh unit only 44.4kg, easy to carry for RV trips, camping and temporary construction power supply. The uniform stackable size allows flexible capacity expansion from 5kWh up to 64kWh by stacking 4 units, matching different villa and commercial load demands without extra cabinet renovation costs.
2. Ultra-Long Cycle Life Cuts Long-Term Replacement Expense
Ordinary lead-acid batteries only provide 800–1200 cycles and need replacement every 3–4 years, generating high recurring costs. Our LiFePO4 cells achieve stable 3000+ deep cycles, extending service lifespan to over 10 years. Calculated on a 10-year usage cycle, it reduces total battery replacement expenditure by 60% compared with lead-acid alternatives, bringing faster ROI for residential solar storage projects.
3. Built-In Intelligent BMS Ensures Balanced Cell Aging & Stable Output
The embedded intelligent BMS monitors voltage, current and temperature of each cell in real time, automatically activating passive cell balancing during charging to eliminate cell voltage imbalance. It slows down cell attenuation by 50%, maintains consistent full-power output throughout the whole cycle life, and avoids capacity attenuation caused by inconsistent internal cells. No manual calibration is required, realizing zero daily maintenance.
4. Comprehensive Multi-Layer Safety Protection Eliminates Household Fire Risks
Lithium iron phosphate cathode material features excellent thermal stability and will not burn or explode under overcharge, extrusion, nail penetration or short-circuit conditions. The built-in 7-in-1 protection system covers overcharge, over-discharge, over-current, short-circuit, high-temperature, low-temperature and cell imbalance protection, intercepting 99% of abnormal circuit risks and meeting strict global household electrical safety standards.
5. Large Clear Display Screen for Real-Time Energy Visualization
The extra-wide front display panel intuitively shows real-time battery voltage, remaining capacity percentage, charging power and discharging load power. Home users can clearly check solar energy storage and household power consumption status at a glance, reasonably arrange power usage to maximize self-consumption of free solar power and cut monthly utility bills by up to 70%.
6. High Continuous Charge & Discharge Current Supports Heavy Household Loads
The high-current version supports up to 200A rated charge/discharge current, perfectly matching high-power equipment such as central air conditioning, swimming pool heat pumps, electric vehicle chargers and kitchen induction cookers. It maintains stable pure sine wave power output without voltage drop or protection shutdown during peak power consumption hours.
Real Application Cases with Quantified ROI
Case 1: Mid-Size Villa Solar Storage (15.336kWh Battery Pack)
- Configuration: 15.336kWh Syncorepower LiFePO4 battery + 12kW hybrid solar inverter + 10kW rooftop PV
- Measured Benefits: The villa originally relied 100% on grid power with monthly electricity cost over $320. After installation, solar self-consumption rate reaches 78%, monthly bill reduced to $96, saving over $2688 per year. During seasonal grid outages, the battery provides 16+ hours continuous backup power for all core household appliances, with zero safety faults in 3 years of operation. The project payback period is only 3.8 years.
Case 2: RV & Off-Grid Cabin Independent Power Supply (5.12kWh Battery)
- Configuration: Single 5.12kWh stackable battery + 6.2kW off-grid hybrid inverter + 6kW ground PV array
- Measured Benefits: Deployed in remote mountain cabins and long-distance RV travel scenarios. The lightweight compact design is easy to transport and install without fixed foundation. It fully supports daily lighting, refrigerators, air conditioning and small home appliances, completely getting rid of unstable utility grid power. With 3000+ cycle life, it avoids frequent lead-acid battery replacement in remote areas with inconvenient maintenance.
Case 3: Small Retail Shop Peak-Valley Arbitrage (4 × 16.077kWh Stacked Batteries)
- Configuration: 4 stacked 16.077kWh battery packs + 60kW three-phase commercial hybrid inverter
- Measured Benefits: The retail shop stores cheap off-peak grid power and solar energy during daytime for use during expensive peak tariff periods. It cuts peak electricity expenditure by 72%, generating extra monthly arbitrage income of around $410. The stackable parallel design freely expands capacity as shop load grows, without replacing the whole energy storage system.
Wide Application Scenarios
- High-end villas & residential houses: rooftop solar self-consumption and grid outage emergency backup power
- Off-grid mountain cabins, rural homestays and remote self-sufficient residences
- RV, camping, mobile cabins and outdoor temporary construction power supply
- Small shops, offices and agricultural greenhouses peak-valley electricity arbitrage storage
- Matching with Syncorepower series hybrid solar inverters for complete green energy storage systems
Why Choose Syncorepower LiFePO4 Battery Packs?
Syncorepower focuses on safe, long-lifespan residential lithium energy storage batteries. Every cell undergoes strict capacity screening, thermal cycling and aging testing before assembly, with integrated intelligent BMS and multi-layer safety protection. Our stackable LiFePO4 batteries feature lightweight compact size, real-time data display, ≥3000 deep cycles and flexible parallel expansion, helping global residential and small commercial users cut electricity costs by up to 70% and enjoy over 10 years of maintenance-free stable operation. All products comply with international lithium battery safety standards, providing reliable, cost-effective energy storage matching solutions for all hybrid solar inverter systems.
Important Safety & Operation Precautions
Storage Instruction: For long-term idle storage, maintain battery SOC at 50%–60%, and recharge every 3 months to extend overall cycle life.
Stacking Regulation: Only battery packs of the same model, capacity and batch can be stacked in parallel (max 4 units). Professional electrician wiring and parameter matching are required to avoid current imbalance.
Temperature Limit: Do not charge the battery below 0℃ or discharge under -20℃ to prevent permanent cell capacity attenuation. Avoid installing in fully sealed, unventilated high-temperature cabinets.
PV & Inverter Matching: Only use hybrid inverters with 40–60Vdc battery voltage compatibility; mismatched voltage equipment will trigger protection shutdown and damage the BMS.
Safety Installation Rules: Keep the battery away from open flame, flammable materials and direct sunlight. Regularly check the display panel for abnormal voltage or temperature alarms every month.
Load Usage Notice: Do not continuously run loads exceeding the rated discharge current for long periods; sustained overload will activate protection cut-off and accelerate cell aging.
Maintenance Guide: Cut off all connection terminals before inspection or movement. Do not disassemble the sealed battery casing privately, otherwise the official warranty will be voided.
