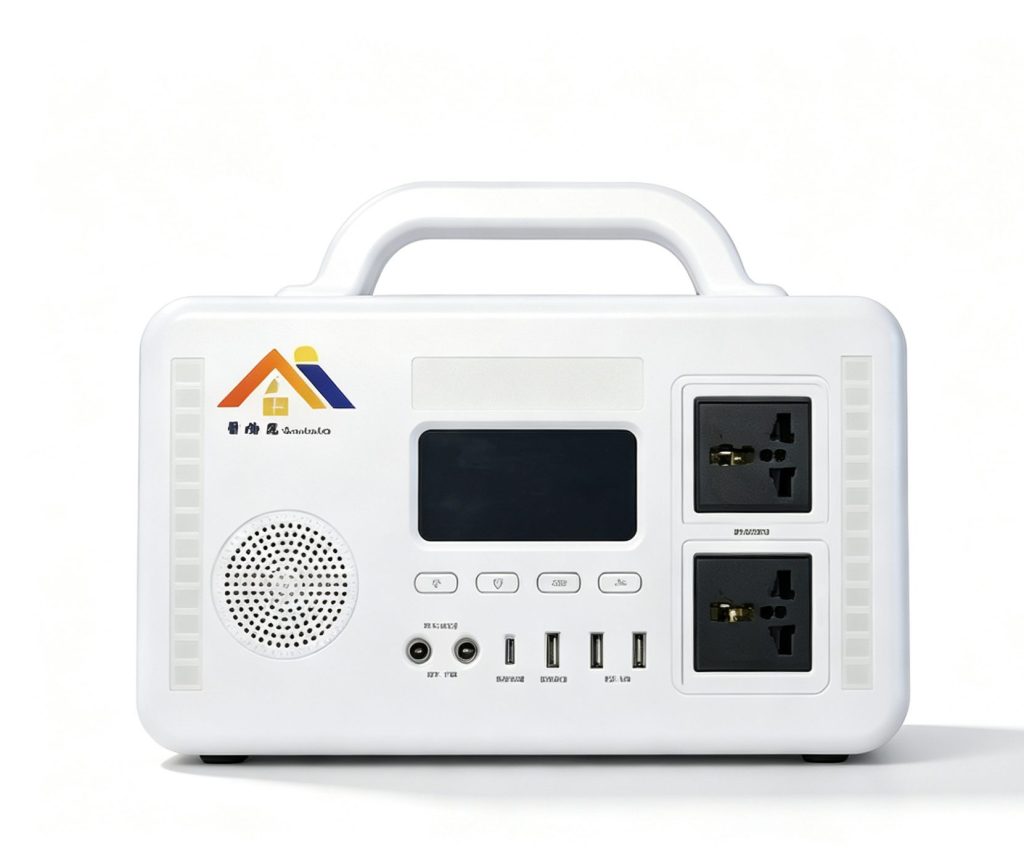

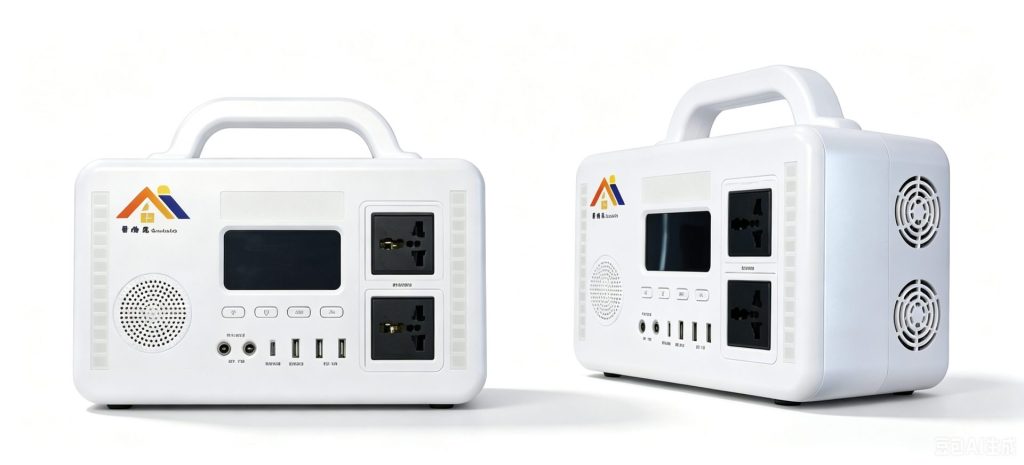

Syncorepower Portable Solar Power Station

Product Overview

Syncorepower portable energy storage power station is a lightweight, all-in-one outdoor backup power supply built with safe LiFePO4 cylindrical cells. Equipped with a built-in portable carry handle, multiple AC/DC/USB fast-charging ports and PWM solar charging tracking function, it delivers stable off-grid power for camping, home emergency blackouts, outdoor work, RV trips and remote off-grid households. Made of flame-retardant PC+V0 material with dual-color options, this compact power station supports solar panel charging, adapter charging and multi-device simultaneous output, bringing reliable, convenient green power anywhere you go.

Key Features

• Two optional large-capacity LiFePO4 configurations: 192Wh / 384Wh to match different power consumption demands
• Dual DC input ports, supporting PWM solar charging tracking with max 24V PV input, eco-friendly self-charging outdoors
• Rich multi-port output: dual 300W AC sockets, QC3.0 & PD fast-charging Type-C, multiple USB-A ports and high-power DC ports to charge cameras, laptops, home appliances and lighting at the same time
• High-safety cylindrical lithium iron phosphate cells with stable chemical structure, long cycle life and low fire risk
• Flame-retardant PC+V0 shell material, durable anti-drop structure for harsh outdoor use
• Ergonomic integrated carry handle, compact size and light weight for easy transport
• Customizable shell color (black / white optional) to meet brand customization requirements
• Built-in cooling fan heat dissipation system for stable continuous high-power output

Complete Technical Parameter Table

Category	Parameter Item	Detailed Specification
Capacity Options	Rated Capacity 1	12.8V 15Ah / 192Wh (60000mAh)
	Rated Capacity 2	12.8V 30Ah / 384Wh (120000mAh)
Input Ports	DC Charging Ports	DC1 & DC2 dual ports, support 14.6V/5A or 14.6V/10A adapter charging
	Solar PV Charging	PWM solar tracking, max PV input voltage: 24V; 2 independent DC5521 circuits Note: Do not connect different power sources to two DC ports simultaneously
Multi Output Ports	AC Output (AC1 / AC2)	220V or 110V, 300W, 50Hz/60Hz
	Type-C Fast Charging	QC3.0 & PD max 18W (12V/1.5A)
	USB-A1 Fast Charging	QC3.0 max 18W (12V/1.5A)
	USB-A2 & USB-A3 Shared Output	Max 15W total (5V/3A)
	DC High-Power Ports (DC1 / DC2)	Max 120W total (12V/10A)
Battery Cell	Cell Type	33140 cylindrical lithium iron phosphate (LiFePO4) cell
Physical Specs	Product Dimension	278129215mm
	Shell Material	PC+V0 flame retardant plastic
	Standard Colors	Black, White; custom color available
	Net Weight	Approx 2.8kg Note: Weight may have ±8% deviation due to multi-supplier components, subject to actual delivered goods
Packaging	Outer Carton Size	320170270mm

Core Performance Advantages

1. Dual Capacity Customization for All Scenarios
   Two energy capacity versions (192Wh & 384Wh) are available. The 192Wh lightweight version fits short camping trips and small device charging, while the 384Wh high-capacity model supports long-time home emergency backup and high-power outdoor equipment.
2. All-Round Multi-Port Output Compatibility
   Dual 300W AC outlets can run household appliances such as small refrigerators, fans and lighting. QC/PD fast charging ports quickly charge mobile phones, tablets and laptops, while high-power DC ports power cameras, water pumps and RV equipment, covering all daily electronic devices.
3. Independent PWM Solar Self-Charging System
   Built-in PWM solar charging controller supports outdoor solar panel input. Users can harvest solar energy for free power supply in remote areas without grid access, completely independent of municipal electricity.
4. Ultra-Safe LiFePO4 & Flame-Retardant Housing
   Adopts 33140 LiFePO4 cylindrical cells with outstanding thermal stability to avoid thermal runaway risks. The whole shell uses PC+V0 flame retardant material to greatly reduce fire hazards during long-term operation.
5. Portable Compact Outdoor Design
   Integrated one-piece carry handle and 2.8kg lightweight body make it easy to carry for camping, hiking, field work and RV travel. Internal dual cooling fans ensure stable heat dissipation under continuous high-load operation.
6. Flexible OEM Customization Support
   Shell color, printed logo and outer packaging can be customized, helping brands launch differentiated portable power station products.

Comprehensive Safety Protection Functions

• Over-charge & over-discharge protection for battery cells
• Over-current, overload and short-circuit automatic cut-off protection
• Over-temperature protection with cooling fan linkage power-off
• Reverse connection protection for DC solar charging ports
• Over-voltage & under-voltage input protection
• Multi-layer insulation flame retardant shell safety design

Main Application Scenarios

• Outdoor camping, hiking, fishing and RV self-driving travel
• Household emergency backup power during grid power outages
• Field construction, outdoor photography and remote field operation
• Off-grid rural households, mountain cabins and island residences
• Small medical equipment, portable refrigerators and outdoor lighting power supply

Why Choose Syncorepower?

Syncorepower portable solar power stations adopt industry-safe lithium iron phosphate cells and integrated multi-port power management technology. Every finished product undergoes full aging, charging-discharging cycle and safety testing before delivery. Our dual-capacity modular design, solar self-charging function and lightweight portable structure provide cost-effective off-grid power solutions for outdoor enthusiasts, families and industrial field users worldwide, supporting flexible OEM customization to meet global market demands.
