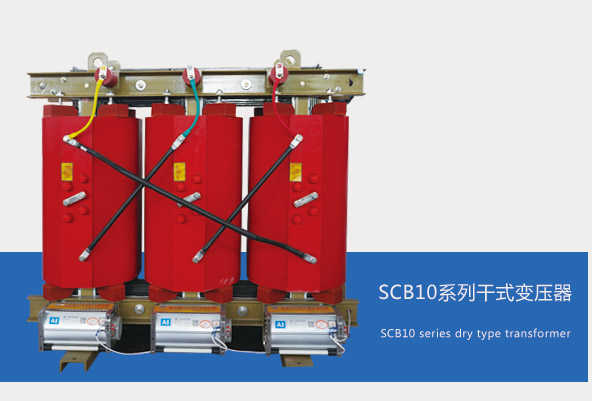

SCB10-10KV epoxy resin cast dry type transformer is engineered for high performance and reliability in various electrical applications. It is made of high-quality materials and is produced by advanced production and testing equipment according to strict processes, having the characteristics of high reliability and long service life. Besides, designed to operate at voltage levels up to 10 KV, this transformer is ideal for industrial and commercial environments where safety and efficiency are paramount. And it can be equipped with shells of different protection levels or no shell according to different use environments, which is suitable for high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants, ships, and other important or special environments.

SCB10-10KV epoxy resin cast dry type transformer is a type of dry-type transformer made of epoxy resin insulation material through vacuum casting process. It is suitable for 10KV voltage level three-phase power system.

What Does the “SCB10-10KV” Mean?

S: Three-phase

C: Epoxy resin casting (“C” stands for solid molding, usually refers to epoxy resin vacuum casting)

B: Foil winding (copper foil or aluminum foil, different from traditional wire winding)

10: Performance level code, indicating that the no-load loss and load loss comply with the 10 series (high-efficiency and energy-saving type) in the GB 20052-2020 energy efficiency standard

10KV: Rated voltage level, applicable to 10 kilovolt distribution system
